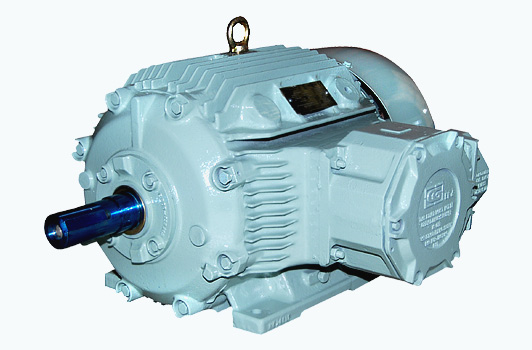

Flame Proof Motors Ex ‘db’ (LV)

LOW VOLTAGE MOTORS

CG offers wide range of low voltage Flameproof squirrel cage & Slip ring electric motors for operation in hazardous and hostile environments, ranging from 0.37 kW to 500 kW. These Flameproof Motors are licensed by a European notified body (BASEEFA) and Indian notified body (BIS/DGMS/PESO). All relevant products fully comply with the requirements of the ATEX & CE Directives.

We also offer a complete range of Squirrel Cage Motors for Gas Group IIC. These motors are manufactured under most stringent quality control norms for IIC atmosphere and are duly tested at ERTL, Kolkata and Karandikar Laboratories, Mumbai.

ISO_CERTIFICATE

Description

  • Standard Motors are designed for foot mounting; other mountings are also available on request.
  • Standard Levels of enclosure protection for motor and terminal box is IP55. With IP56,IP65 and IP66 available on request
  • All Hazardous area motors (except for Gas Group IIC-available in TOP only) have terminal box on the RHS as standard. Top terminal box can be offered on request.
  • Standard Paint shade is anti corrosive epoxy RAL7034(Yellow Grey), others are also available on request
  • The flame proof motors manufactured by CG are suitable for Temperature Class T4 as per IS/IEC 60079-1.

Following accessories can be offered on request.

  • Thermistor
  • Space Heater
  • Insulated Bearing ( Frame IEC 200 and above)
  • Roller Bearing (Frame IEC 225 and above)
  • Encoder Mounting arrangement
  • MS Canopy
  • Double Compression Cable Glands
